Thursday, October 11, 2012

A Long Time Coming and a Long Time Over Due!

I have finished the ol BattleWagon.  A little over 2 years in the making this project took a bit longer then originally planed.  But I would not change anything as I'm satisfied with the finial results. Below are a few pictures of the ol BattleWagon. A full set of in progress and completed photographs can be seen by clicking on the BattleWagon tab above.






Thank you and I hoped you enjoyed following along.  Now to finish up the M20A1!

Wednesday, May 16, 2012

More M20(A1) 81mm Mortar Carrier (ETO)

Just a quick little update on my M20 build. As you can see I finished up the major construction and put a few sandbags around the fighting compartment.  I'll be warping up the small details and working up some crew kit to throw on the back to give it that will lived in effect. Soon it will be on to the painting and weathering and I'm really looking forward to that....Lots of AK and MiG in my future!

Be sure to follow the M20(A1) Photo essay tad at the top of the page for more photographs.




Thanks for stopping by and as always comments are welcome.

Sunday, April 29, 2012

M20(A1) 81mm Mortar Carrier (ETO)


I’ve been busy over the past month working on this little project for the Big Spring Contest over on Scale Model Addict.  This is a “what if” build placing an 81mm mortar into an American M20 armored car by Tamiya.  Additionally the M20 will be towing a liberated German Sd.Ah.52 37mm Flack Ammunition Trailer from Bronco models accompanied by an Alpine figure.  Originally these would be place on scenic base from Mini-Art but given the compressed build time of just 90 days I’m not sure this will accomplished.

Most of the work thus far has gone into the interior of the M20 converting it to house the Mortar and ammunition for it. The Tamiya kit is rather nice and only minor work is needed to improve the exterior.  Evergreen styrene tubing is the major component used for the scratch building.





Be sure to follow the M20(A1)Photo essay  tab at the top of the page for more photographs.

Thanks for stopping and as always comments are welcome.

Thursday, March 29, 2012

Little Sure Shot Part-1


For this project I'll be tackling the AFV Club M5A1 Late.  This project was originally conceived as part of an online model build. While I will try to finish this within the allotted time my track record is...shall we say "Not the Best"

I always like the boxy little look of the Stuart family of fighting Bang Boxes. But with its more refined lines and sloping armor the M5s looked more interesting to me.  I knew I wanted to model a late version with the two prominent features; the Anti-Aircraft Machine Gun shield located on the right side of the turret and the large stowage ben situated on the rear plate.

After pouring over my reference material I came across two photos of M5s that I really liked. While accuracy is important I’m not a slave to it and what I wanted was to build an overall representation of an M5 in the European Theater of Operations as it would appear in the field.  So I decided to combine the two photos into one model.

The first photo is from the well-known book by Squadron, Stuart in action.


This picture captures so much of what I wanted for the look of an M5 operating in the field.  I mean this just screams “BUILD ME!!”

Before I get to building I like to sit down at the computer and preform a little photo analysis. I picking out the features that I want to include during the build and identify any mystery items.  The blow picture shows kind of how I do that.


As you can see since this is from the front I’ll use other suitable photo reference for the remaining parts of this little gal.

The next photo is taken out of Concord’s U.S. Light Tanks at War,...



 ....And the photo analysis.


Two other photos that inspired me are of an M5 restored and dressed up in Marine Corps colors. Not exactly ETO but you can see why I like these.  Unfortunately I pulled these outstanding photos from a web site quit a long time ago and I don’t have any information on them.


Next up are some more inspirational pictures that I have collected over the years from various sources but mostly from web sites. The focus of these is stowage, I love me some stowage, and how it is placed on the respective vehicles.

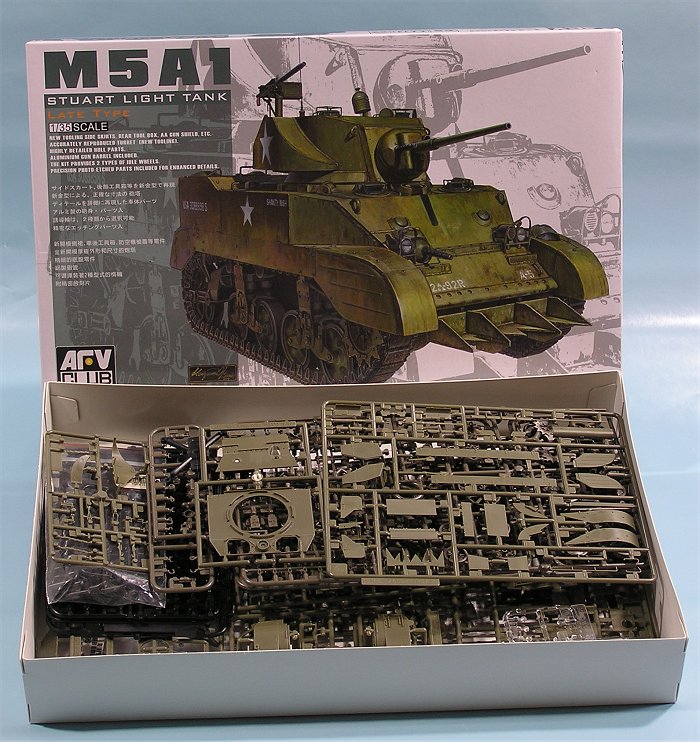

The basis for this build is the AFV Club M5A1 Stuart Late Type, AFV35161,  in 1/35  Scale.  This kit contained all the features noted above that I was looking for and is really the only serious choice as the Tamiya M5 would be more work then I was looking for.   PMMS has a nice review of AFV's M5A1 Late



The additions I planned to use for this build are the AFV Club T16 Tracks (AF35019), Verlinden’s M5A1 Stuart Interior Update (VER 1562) and RB Models barrel replacements for the 37mm Gun and the .30 cals (35B24 and 35B82).



While the Verlinden Interior Update is not really made for this kit I figured it would be a good place to obtain complex shapes such as the transmission housing and the turret floor. Based on the level of detail I wished to achieve I would assess the other Verlinden parts to see if I would use them or scratch build new ones.  However some care will be needed when using this set to ensure parts are placed in the correct areas and that the Verlinden items are the correct size. Either way using some or all of the Verlinden parts will help save a little bit of time and sanity. RB Models make some excellent barrel replacements and are reasonably priced but are hard to come by here in the States.  I was able to locate a supply from our Canadian neighbors to the north The Barrel Store…Thanks guys!


Construction of the Lower Hull, Suspension and the T16 Tracks

The lower hull is a multi-part affeir, not the old style tub set-up.  Once the parts where removed and clean you attach the sides.  The first thing you’ll notice is that AFV kits are NOT Tasca kits so the fit is not as good.  That’s not to say it is terrible, just a little patients will be needed.  Several years ago I picked up a couple of right-angle clamps from a company here in the states called Micro-MarkThese clamps come in two sizes,Original 'Right Clamp'and Long 'Right Clamp'.  I used the clamps to assist in making sure the hull sizes went on correctly. Once the hull side where attached I then built up the rear of the lower hull as per the instructions.

The suspension was also build according to the instructions. Only some minor bolt head details were add to the road wheels. On the right side I used the early pattern idler wheel and an open spoke road wheel with the opening on both plated over.  The idea here is to display them as field repair replacements using early parts.

 The AFV T16 tracks are nicely detailed and go together rather easily despite their rather small size.  To help the process and making sure the tracks stay somewhat straight I built a simple jig. I was fortunate to locate some pre-cut bass wood that was the same width as the track pad allowing the end connectors to be fitted. I work in groups of three track links and then made up the track runs as needed. Once the tracks were fitted the extended end connectors (EEC) (duckbills) are attached. According to the reference photos being used for this build the EEC were attach to every-other end connector. This adds a great little detail to the overall model.


One last detail item that was added was the texturing of the track faces to show some ware-n-tear. This was done using a dermal tool with a cutting bit.  With the tracks installed that wraps up the major construction for the lower hull, only a few odds-n-end remained.




Here is sneak peek of the next phase of this build…The interior!
Be sure to checkout more photos of this build under the "Little Sure Shot" tab at the top of this page.
Thanks for stopping by and I hope you enjoyed your stay.
Please feel free to leave any comments and or questions.

Wednesday, March 14, 2012

Restart...

Yep it has been way to long.  I've been a bit side tracked with home and at work thingys but mostly just dragging my feet trying to figure out how and what I wanted to post here.  The bottom-line is I think I got it worked out and ready to restart.

But before I get to rolling here I wanted give you all a little peek into where I do my building and painting of the  Allied Armor...and other "stuff" you'll see here.

I actually have separate work areas, a building area and a painting area.  As I like spending time with my wife I fixed up an old computer armoire she was no longer using and put it next to our TV.  This way she can read, watch TV,  even take a nap while I work on my latest project. It may look a bit cramped but it really works out nicely.

Here it is all closed up for when we have guests over, or something like that.

...And here it is as it normally looks most of the time...in use

The other area is located in my basement and of course that where all the smelly stuff happens, Also the "stash" is kept here.  As you see I have two work areas here which is nice for keeping things separate while I work on different projects.

The airbrushing area with paint booth...

...And other area for detail finishing, weathering and building up the bases for each model.

...and finally the "stash"...not overly large but should keep me busy.

Ok that's it for now but check back soon....no really!!....I promise I'm already working on my next post.

See you then!
